2019 RS-SJ Relay and 485 household and industrial use wangzi shell water leak detection

FOB Reference Price:Get Latest Price
$24.00 - $26.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
RS-SJ-*-2
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Samples:
$24.00 /Pieces | 1 Pieces (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
RENKE
Name:
2019 RS-SJ Relay and 485 and industrial use wangzi shell underground
Key Word:
water leak detection
Color:
white
Application:
Check for water
Certificate:
CE/FCC/RoHS/ISO9001
Warranty:
2 Years
Material:
ABS Plastic
Power supply:
10 ~ 30V DC
Protect level:
IP65
MOQ:
1pcs
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month water leak detection
Packaging & Delivery
Packaging Details
Packaging products using EPE.
(water leak detection)
Port
Qingdao,Tianjin

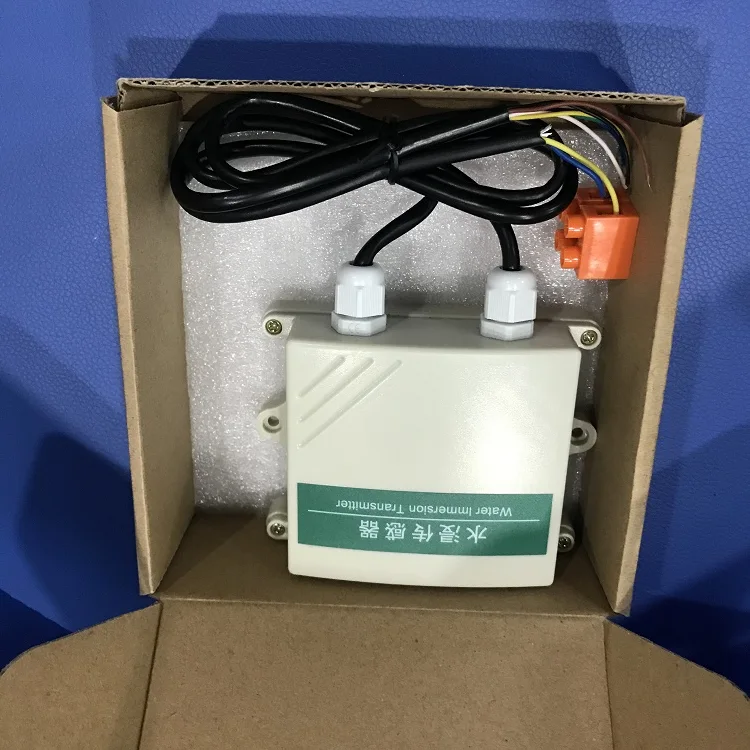

Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
Product Description

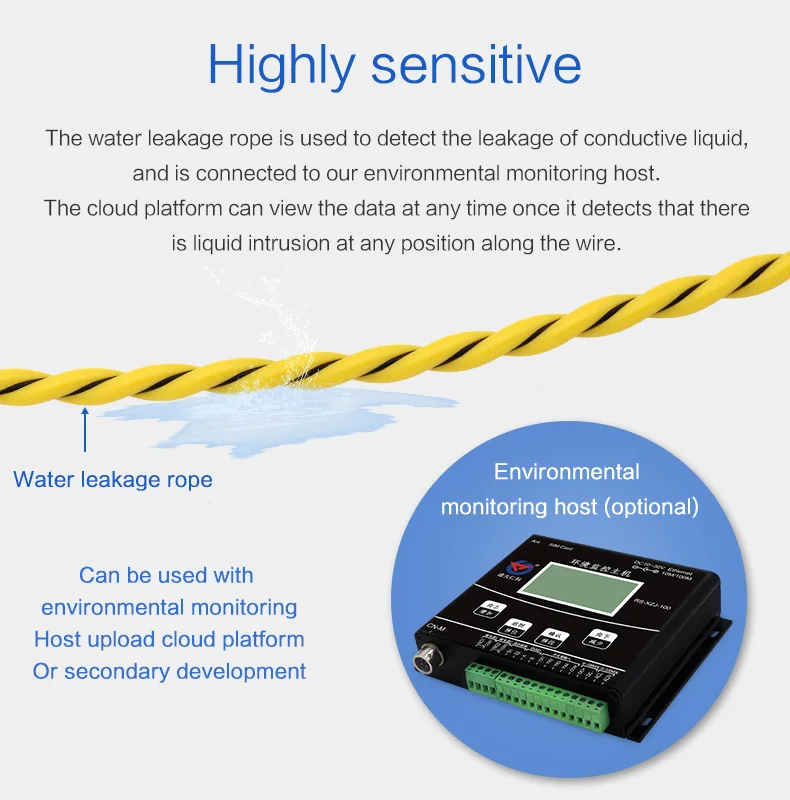

The water immersion detector is widely used in communication base stations, hotels, restaurants, computer rooms, libraries, archives, warehouses, equipment cabinets and other places need water alarm, the sensor input power, sense line, signal output three parts completely isolated . Safe, reliable, beautiful appearance, easy installation.

Main technology

   Power supply: 10 ~ 30V DC

   Transmitter circuit operating temperature:  -20 ℃ ~ 60 ℃/0%RH~80%RH
   False alarm rate: <100ppm
   Relay output: normally open contact

Wiring


Configuration

1.Hardware connection

The device is connected to the computer via USB to 485.(Note: When configuring, only one 485 device is connected to 485 equipment.)

1.computer operation

(1) Install the USB to 485 driver
(2)Opening the datagram, and choosing "test software" ---- "485 parameter setting software" and finding out "485 Parameter configuration tool"and opening it.

② connect with only one device and be powered, and click "test the baud rate" of the software to test the device baud rate and address, the default baud rate is 4800bit/s and default address is 0x01.
③change the address and baud rate based on the application requirement, and meanwhile the current situation of the device function can be checked.
④if the test is not success, please check the device wring and 485 drive installation situation again.
