Rs485 Type solar tracking system wind speed sensor

FOB Reference Price:Get Latest Price
$28.00 - $33.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 3 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$33.00 /Sets | 1 Sets (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
JDRK
Model Number:
RS-FX-N01
Usage:
Speed Sensor
Theory:
Current Sensor
Output:
Digital Sensor
Product name:
Rs485 Type solar tracking system wind speed sensor
DC powered:
10~30V DC
Application:
Detection of humidity and temperature
Operating temperature:
-20℃~+60℃,0%RH~80%RH
Baud rate::
2400,4800 (default), 9600
RS485 output:
0.4W
Warranty:
2 Years
Certificate:
ISO9001 CE ROHS FCC
Measuring range:
0-60m/s
Accuracy:
±(0.2+0.03V)m/s
Supply Ability
Supply Ability:
200 Set/Sets per Day wind speed sensor
Packaging & Delivery
Packaging Details
wind speed sensor: Packaging products using EPE.
Port
Qingdao,Tianjing,Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 3 To be negotiated
Product Description
Moudle
Wind speed sensor
Moudle
Wind direction sensor
power supply
10 ~ 30V DC
power supply
10 ~ 30V DC
Measuring range
0 ~ 60m / s
Measuring range
8 indicate the direction
Accuracy
±(0.2+0.03V)m/s
Working Temp
-20℃~+60℃, 0%RH~80%RH
Resolution
0 .1 m / s
wind speed sensor
wind speed sensor
wind speed sensor
Parameters
485 (modbus) protocol
Baud Rate: 2400, 4800 (default), 9600
Data bit length: 8
Parity: none
Stop bit length: 1
The default ModBus Address: 1
Support Function code: 03
power consumption
0.4W   wind speed sensor
Response Time
≤ 0.5s  wind speed sensor
Start wind speed
≤ 0.2m / s  wind speed sensor
Working Temp
-20℃~+60℃,0%RH~80%RH
response speed
≤ 0.5s
Output signal
RS485/Analog/Pulse
Output signal
RS485/Analog

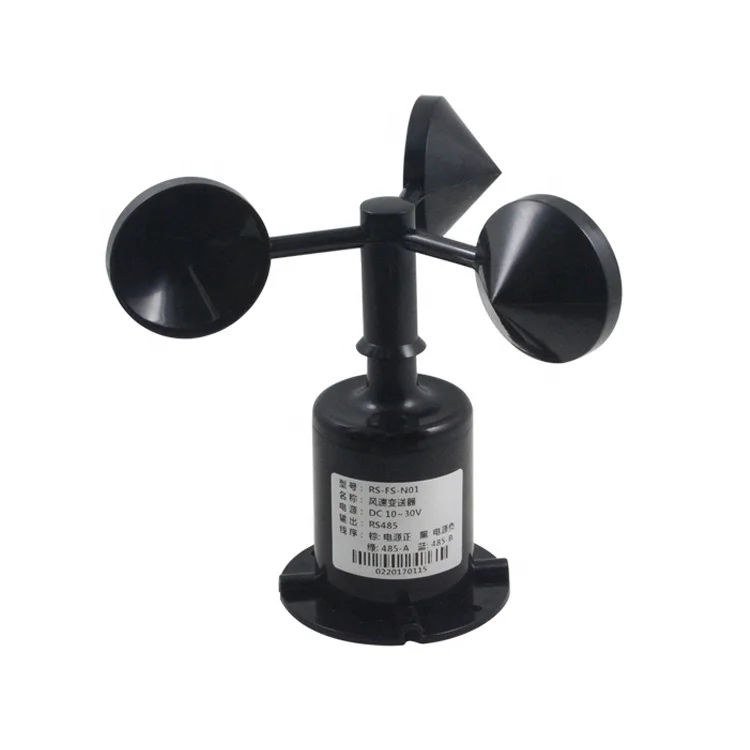

RS-FS-N01 wind speed sensor, compact and lightweight, easy to carry and assemble,design cups can be efficiently obtain information
about the wind speed, high-quality aluminum alloy housing, external spray plating process, has good anti-corrosion, anti- Erosion
and other characteristics, to ensure long-term use of the transmitter without rust phenomenon, at the same time with the internal smooth bearing system to ensure the accuracy of information collection.

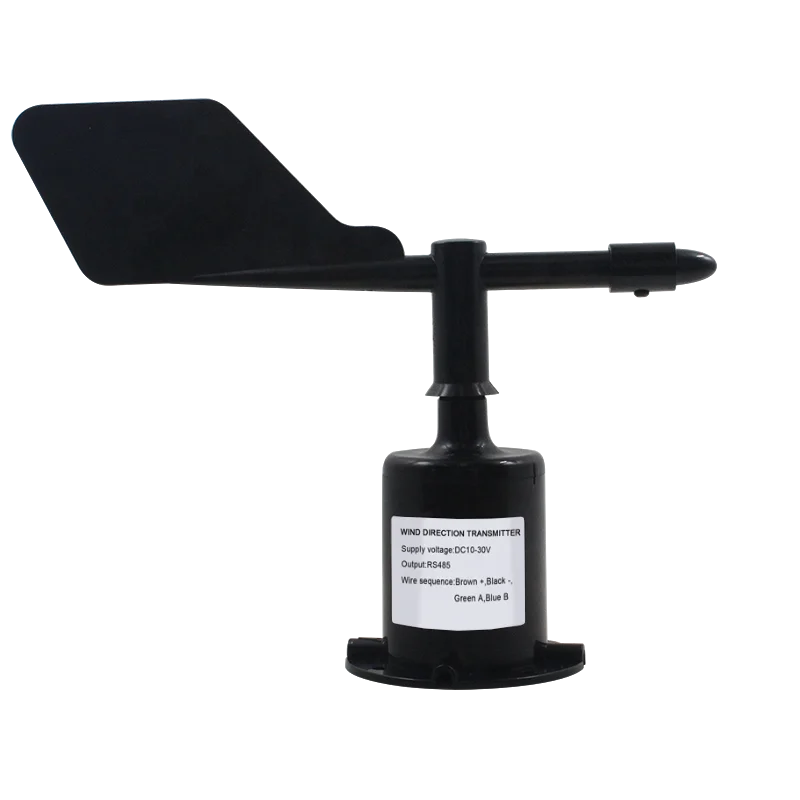

RS-FX-N01 wind direction sensor, compact and lightweight, easy to carry and assembly, a new design concept can effectively obtain
information on wind direction, high-quality aluminum alloy housing, external spray plating process, has good anti-corrosion, anti-
Erosion and other characteristics, to ensure long-term use of the transmitter without rust phenomenon, colleagues with the internal smooth bearing system to ensure the accuracy of information collection.
Detailed Images
1.Range: 0- 70m / s, the resolution of 0.1m / s 2.Anti - electromagnetic interference treatment
3.Using the bottom of the outlet way, completely Du air plug rubber pad aging problem, long-term use is still waterproof
4.The use of high-performance imported bearings, rotating resistance is small, accurate
measurement
5.Waterproof case, mechanical strength, high hardness, corrosion resistance, long-term use in outdoor rust
6.Equipment structure and weight have been carefully designed and distributed, the inertia is small, responsive
7.Pulse,Analog or ModBus-RTU standard communication
1.Range: 8 indicating a direction
2.Anti - electromagnetic interference treatment
3.Using high-performance imported bearings, rotating resistance is small, accurate measurement
4.Waterproof case, mechanical strength, high hardness, corrosion resistance, long-term use in outdoor rust
5.Equipment structure and weight have been carefully designed and distributed, the inertia is small, responsive
6.Pulse,Analog or ModBus-RTU standard communication
Electrical Wiring
Line
color
RS485 Description
Line
color
Analog Description
brown
Positive power supply
brown
Positive power supply
black
Negative power supply
black
Negative power supply
yellow
485 -A
Blue
positive Wind signal
blue
485 -B
Green
negative Wind signal
Calculation Method

Wind Speed Sensor  wind speed sensor   wind speed sensor    wind speed sensor   wind speed sensor

1 Calculation current mode outputs the converted signal Range 0 ~ 30m / s, 4 ~ 20mA output when the output signal is 12mA, the current wind speed is calculated. Winds range span of 30m / s, to express 16mA current signal, 30m / s / 16mA = 1.875m / s / mA, i.e., the current wind speed variations 1mA 1.875m / s. So the measured values can be measured Calcd 12mA-4mA = 8mA.8mA * 1.875m / s / mA = 15m / s, the current wind speed = 15m / s.
2 voltage-converts the output signal calculation Range 0 ~ 30m / s, 0-10V output to an example, when the output signal of 5V, the current wind speed is calculated. Winds range span of 30m / s, with a 10V voltage signal expression, 30m / s / 10V = 3m / s / V, i.e., the voltagecorresponding to the wind speed change by 1V 3m / s. Measurement 5V-0V = 5V. 5V * 3 / m / s / V = 15m / s. The current wind speed is 15m / s.
