Portable small multi function insulation cold storage new medicine delivery cooler box

  • 1 - 49 Pieces
    $229.50
  • 50 - 99 Pieces
    $215.00
  • >=100 Pieces
    $200.20
Color:
Blue cooler box
Lead Time:
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Samples:
$200.20 /Pieces | 1 Pieces (Min. Order) | Buy Samples
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
RENKE
Model Number:
RS-BWX
Material:
PE+PU+PP
Use:
Food
Pattern Type:
Geometric
Feature:
Waterproof
Name:
multi function cold storage new medicine delivery cooler box
key words:
medicine cooler box
Used for:
Medical transportation
refresh time:
2s
Power:
0.5w
Data upload:
GPRS
Communication interface:
GPRS/GSM
parameter settings:
SMS parameter settings
Certificate:
CE, ISO, FCC, ROHS
Warranty:
2 Years
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week medicine cooler box
Packaging & Delivery
Packaging Details
medicine cooler box
Port
Qingdao,Tianjing,Shanghai
Lead Time :
Quantity(Pieces) 1 - 500 >500
Est. Time(days) 7 To be negotiated
Product Description
Portable small multi function insulation cold storage new medicine delivery cooler box
Power consumption
0.5W(Average power consumption)   cooler box
Communication Interface
GPRS/GSM,China Mobile or China Unicom's mobile phone network
Data upload
GPRS Data upload, data upload interval 1-60 minutes can be set
parameter settings
SMS parameter settings, support mixed Chinese and English SMS
Alarm function
SMS alarm (1-5 people can be set) ringing voice alarm, local sound and light alarm
Internal storage
Recording period 1-24 hours can be set, recording capacity 65000 groups

A Precision
humidity
±2%RH (5%RH - 95%RH, 25°C)    cooler box
temperature
±0.4°C (25°C)    cooler box    cooler box

B Precision( default)
humidity
±3%RH (5%RH - 95%RH, 25°C)   cooler box
temperature
±0.5°C (25°C)    cooler box    cooler box  cooler box
Transmitter circuit operating temperature
20 ℃ ~ + 60 ℃ ; 0% RH-80% RH
Probe operating temperature
 -40 ℃ ~ + 80 ℃
Probe working humidity
0% RH-100% RH

Long-term stability
humidity
≤1%RH/y    cooler box    cooler box   cooler box
temperature
≤0.1℃/y     cooler box    cooler box   cooler box

Response time
humidity
≤8s (1m/s wind speed)   cooler box   cooler box
temperature
≤25s (1m/s wind speed)    cooler box   cooler box
Temperature display resolution
0.1℃
Humidity display resolution
0.1%RH
Temperature and humidity refresh time
2s

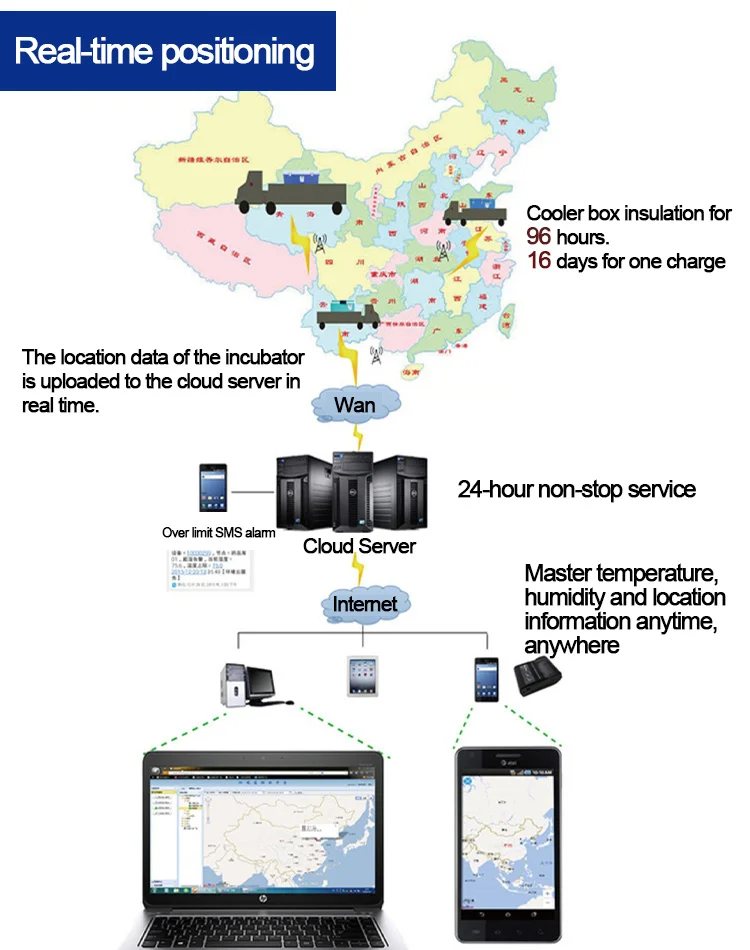

RS-BWX-*-Q series cooler box is developed by our company based on the CFDA's "Management Guide for Cold Chain (Transport, Storage) of Medical Devices". Simply insert the SIM card of Mobile or Unicom to insulate during transportation. The temperature and humidity data in the box is uploaded to the cloud server (cloud platform), and the monthly traffic of the GPRS communication is less than 30M. The cloud platform is completely neutral, free, and runs 24 hours a day. After the cooler box is shipped, you can view the whole temperature and humidity data through the mobile APP. Data can be adjusted via the app and printed via a wireless Bluetooth printer. The incubator uses a liquid crystal display that updates data every minute (CFDA requires at least 1 minute) and uploads data every 1-60 minutes (settable, default 5 minutes) during shipment (CFDA requires at least every 5 minutes). When the monitored temperature and humidity values are out of range, the device automatically adjusts the data logging interval to record once per minute.
The equipment adopts Swiss original temperature and humidity measuring unit, which has high measuring precision and strong anti-interference ability, ensuring excellent measurement performance of the product, and supporting temperature and humidity accuracy can be calibrated twice by password.

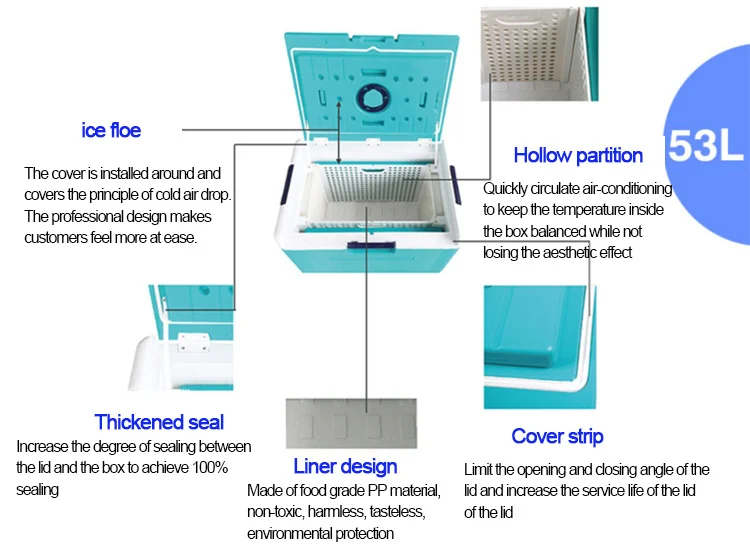

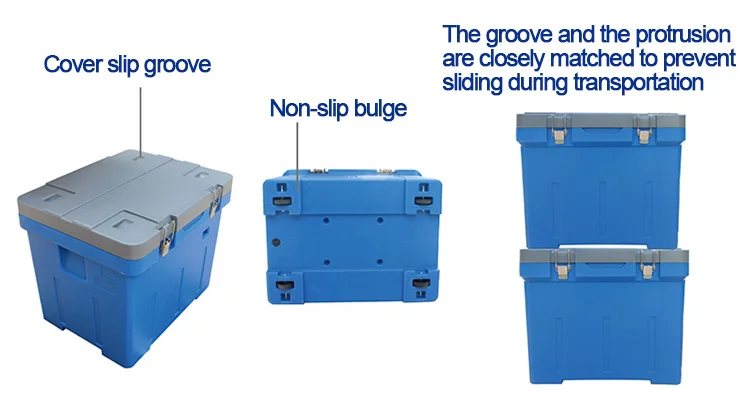

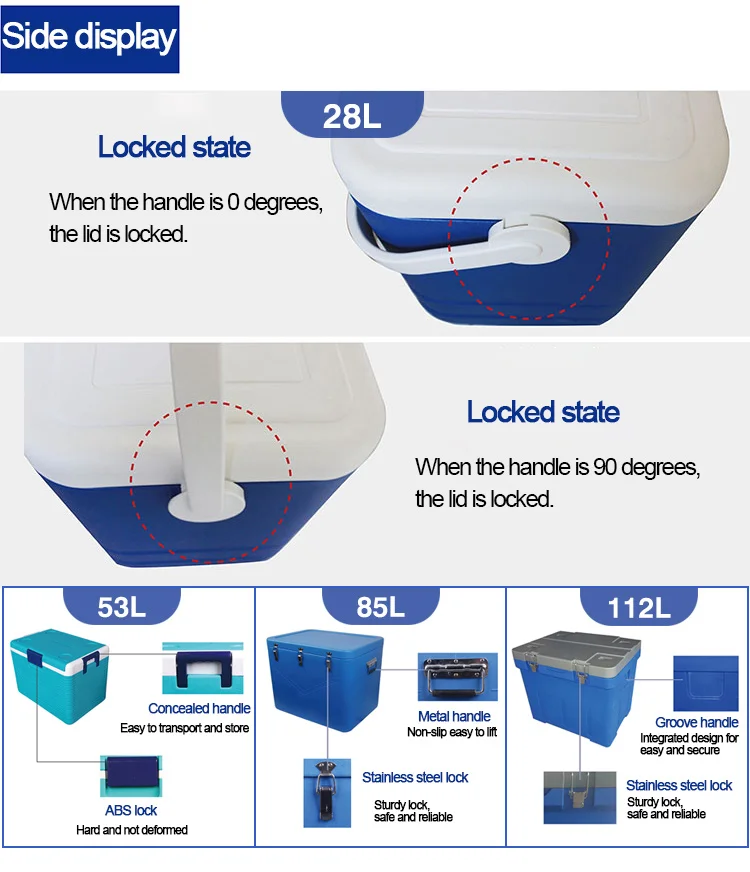

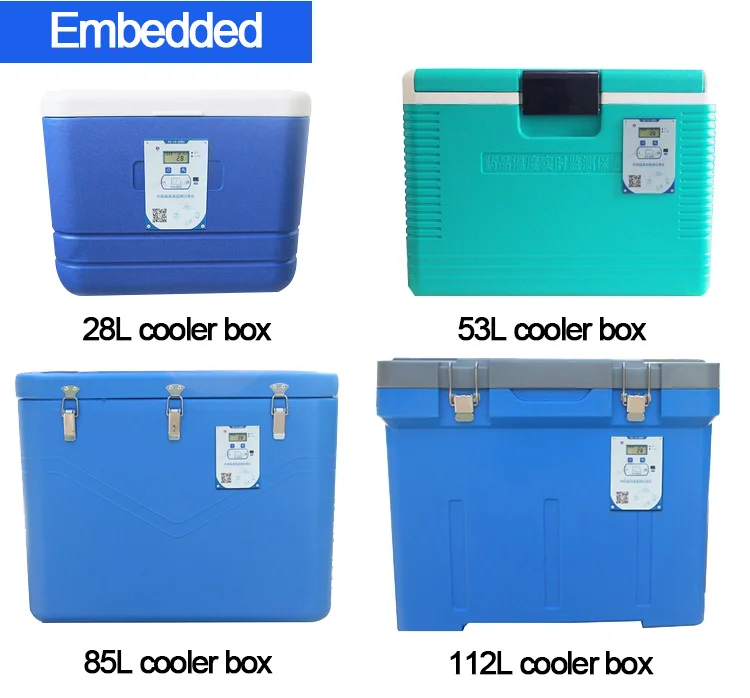

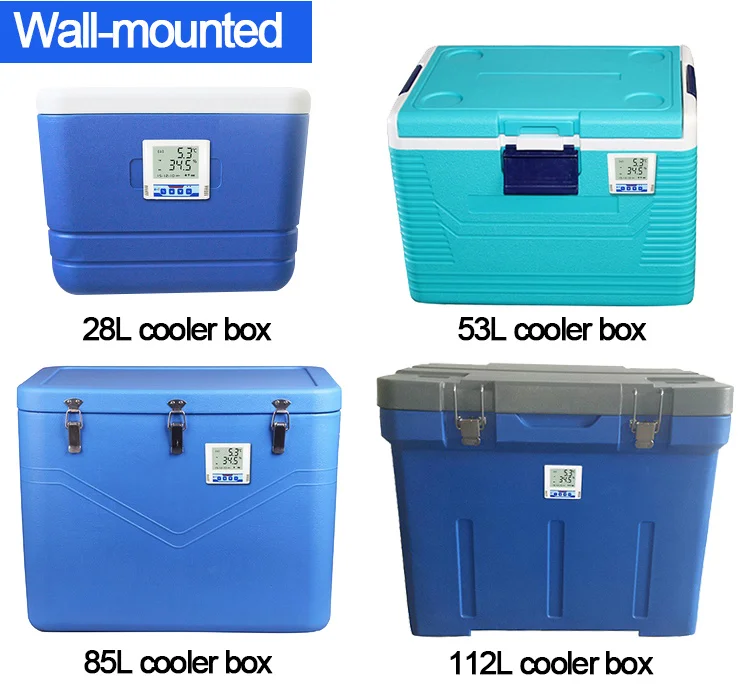

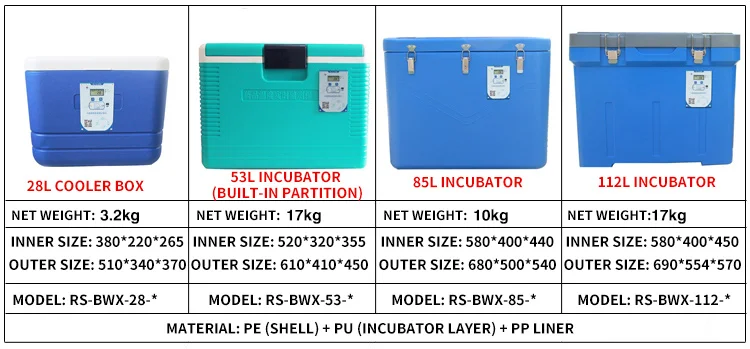

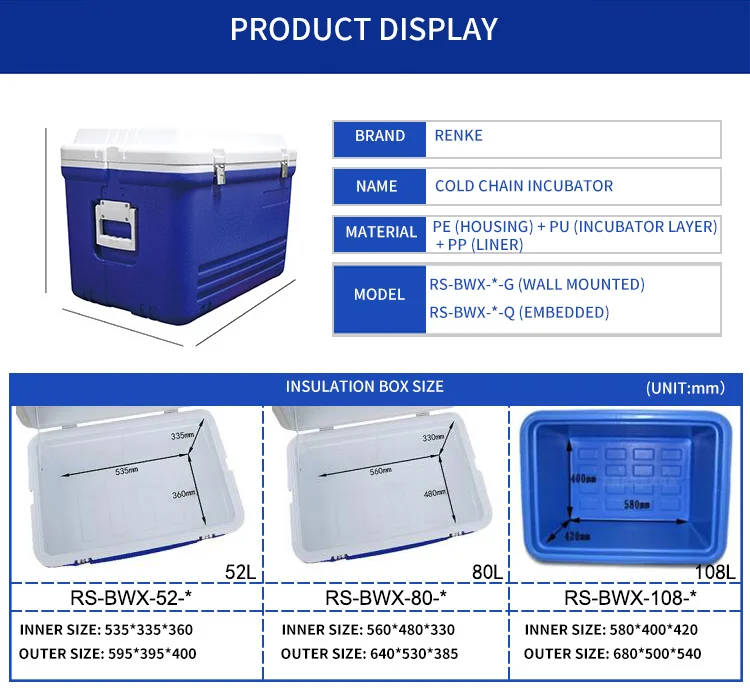

Detailed Images
FEATURES: medicine cooler box  medicine cooler box   medicine cooler box

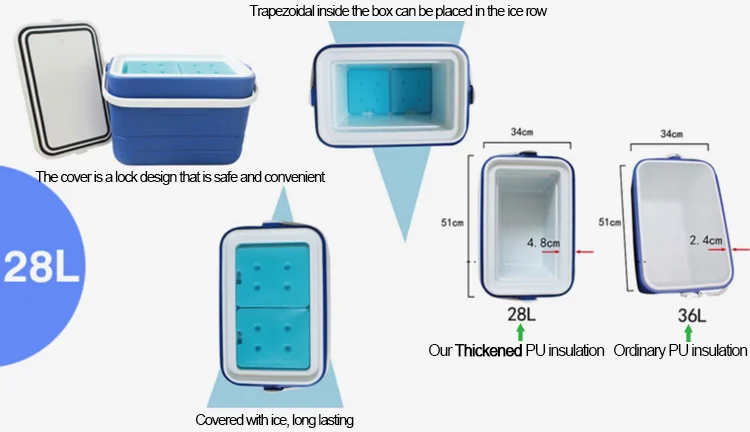

1. Measurement range -20 °C ~ +60 °C, measurement resolution 0.1 °C, measurement accuracy ± 0.5 °C. 2. Upload data to the free environment monitoring cloud platform via GPRS. 3. Built-in memory, data can be continuously recorded, and up to 65,000 records can be recorded. 4. Mobile APP to view historical data, can connect to Bluetooth printer, can adjust data before printing. 5.Temperature over-limit can realize local sound and light alarm and SMS alarm (1~5 responsible persons can set freely). 6. Built-in high-capacity lithium battery, can be used for 11 days on a single charge. Both the inner and outer boxes are made of PE polymer material, and the intermediate insulation layer PU is integrally foamed and formed. The heat preservation time is long, safe, non-toxic, green and environmentally friendly. The rotomolding process is adopted, the thickness of the whole box is uniform, wear-resistant and pressure-resistant, and the surface is smooth. 7.With ice tray (including cold storage powder), the incubator can be stored for 2 hours at 2-8 °C when the ambient temperature is 35 °C.

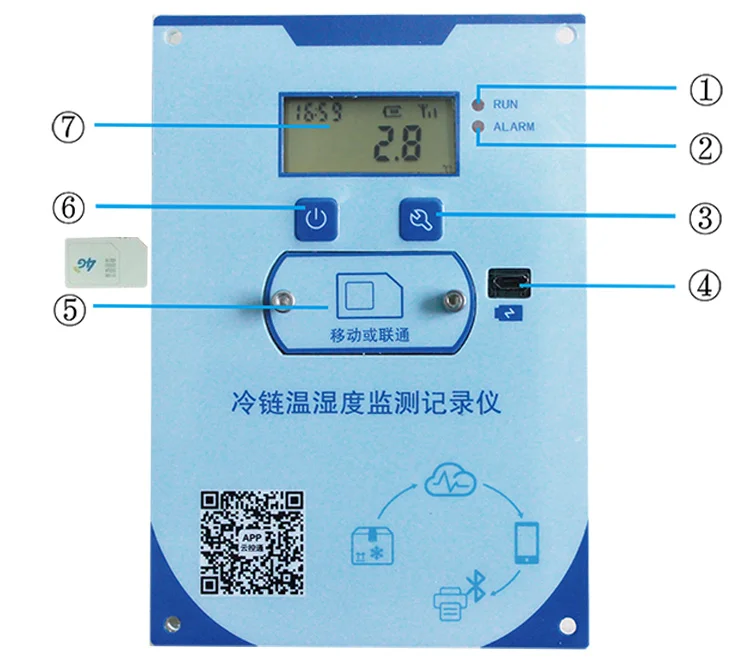

NO.
Description
Remarks
1
Running lights
Running status flashes once per minute
2
Alarm
Sound and light alarm after over limit
3
menu
Set operating parameters
4
Charging interface
Plug the adapter (or the normal mobile phone charger) into the device and charge it in 5 hours.。
5
Mobile card warehouse
Remove the screw to install or replace the phone card
6
Off button
Power on/off button
7
LCD
Real-time display of temperature, time, battery power, signal strength, etc.
Manufacturing Technique
DATA UPLOAD INSTRUCTION SET
SMS sending command
SMS response
Remarks
666666 target address setting 112.229.240.197;
12345678 destination address: 112.229.240.197
Configure and query the destination IP of the data transfer
666666Target address query;
666666Target port setting 2404;
12345678 target port 2404;
Configure and query the destination port number for data transfer
666666Target port query;
SMS AND RINGING ALARM SETTING INSTRUCTION SET
SMS sending command
SMS response
Remarks
666666 number setting 15012345670,
15012345671, 15012345672, 15012345673, 15012345674;
medicine cooler box   medicine cooler box     medicine cooler box       medicine cooler box    medicine cooler box
12345678 number
15012345670,15012345671,
15012345672,15012345673,15012345674
medicine cooler box     medicine cooler box     medicine cooler box    medicine cooler box      medicine cooler box        medicine cooler box
Set which number to send the alarm message to after the device alarm is set.
Note that the SMS number and the number are separated by a comma in English format, and the last number must be followed by an
English semicolon. Up to 5 numbers can be set. Default: none
666666 number inquiry;
Related Products
Company Introduction
Shangdong Renke Control Technology Co.,Ltd. is a leading environmental monitoring high technology enterprise in China. Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service. Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
FAQ
Q: Are you manufacturer?  medicine cooler box    medicine cooler box    medicine cooler box
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patents.  medicine cooler box    medicine cooler box   medicine cooler box    medicine cooler box
medicine cooler box   medicine cooler box   medicine cooler box   medicine cooler box
Q: Do you offer the OEM service?  medicine cooler box    medicine cooler box   medicine cooler box
A: Yes, we can offer OEM service and design the shell and logo for you.
medicine cooler box    medicine cooler box    medicine cooler box    medicine cooler box
Q: Do you offer free samples?  medicine cooler box    medicine cooler box   medicine cooler box
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
medicine cooler box  medicine cooler box   medicine cooler box    medicine cooler box   medicine cooler box
Q: What payment ways do you accept?   medicine cooler box    medicine cooler box    medicine cooler box
A: You can pay us by T/T , PayPal , and West Union .
medicine cooler box   medicine cooler box    medicine cooler box   medicine cooler box   medicine cooler box
Q: What is your delivery time?   medicine cooler box    medicine cooler box    medicine cooler box
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.
 medicine cooler box   medicine cooler box   medicine cooler box   medicine cooler box
Q: How is your quality assurance service?
A: 24 months quality guarantee.
medicine cooler box    medicine cooler box    medicine cooler box   medicine cooler box
Q: Could we make a visit to your factory?  medicine cooler box   medicine cooler box     medicine cooler box
A: Yes, you are welcomed .
